We design and manufacture high-performance CNC routers for carving and engraving applications that demand accuracy, rigidity, and long-term reliability. Our machines are built for professionals working in stone, wood, and metal.
We design and manufacture high-performance CNC routers for carving and engraving applications that demand accuracy, rigidity, and long-term reliability. Our machines are built for professionals working in stone, wood, and metal.
Explore our complete range of CNC stone processing machines. Each machine is engineered for maximum precision, durability, and production efficiency in granite, marble, and natural stone processing.
High-precision bridge saw systems for stone slab cutting, miter cuts, and edge profiling.
The AT-Cubo 625 4A is a robust 4-Axis CNC bridge saw machine engineered for high-precision granite and marble slab cutting. Equipped with a powerful 625mm diamond blade and 4-axis capability for miter cuts, it delivers clean, accurate straight and angled cuts every time. Ideal for countertop fabrication, tile production, and slab resizing in modern stone workshops.
| Axes | 4-Axis (X, Y, Z, A) |
|---|---|
| Table Size | 3200 x 2000 mm |
| Max Blade Diameter | 625 mm |
| Spindle Power | 15 kW / 20 HP |
| Cutting Depth | Up to 220 mm |
| Miter Cutting | 0° - 45° (4th axis) |
| Positioning Accuracy | ± 0.1 mm |
| Control System | AT CNC Pro Controller |

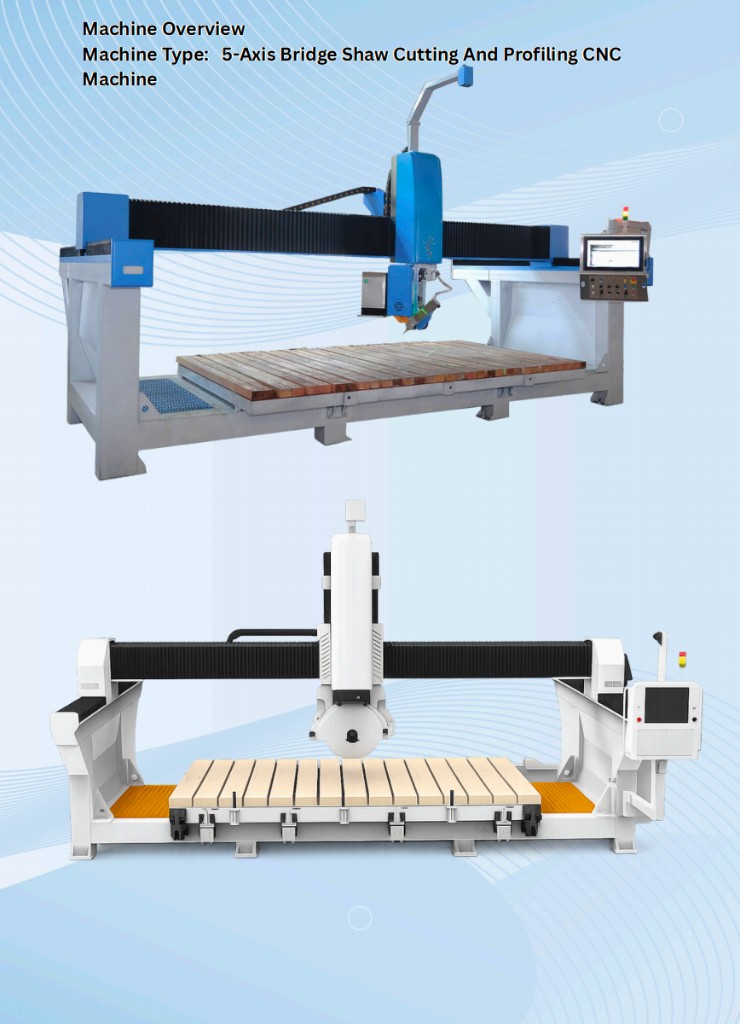

The AT-Cubo 625 5A is a premium 5-Axis CNC bridge saw machine with a tilting and rotating cutting head. It handles complex stone cutting operations including miter cuts at 0-90°, edge profiling, curved cuts, and intricate 3D shapes — all from a single setup. The industry benchmark for advanced stone fabrication workshops requiring maximum versatility.
| Axes | 5-Axis (X, Y, Z, A, C) |
|---|---|
| Table Size | 3500 x 2200 mm |
| Max Blade Diameter | 625 mm |
| Spindle Power | 22 kW / 30 HP |
| Miter Angle | 0° - 90° continuous |
| Head Rotation | 360° continuous C-axis |
| Positioning Accuracy | ± 0.05 mm |
| Control System | AT CNC 5X Pro Controller |
Single and double head CNC routers for stone engraving, carving, lettering, and decorative work on granite and marble.
The AT-SM 3015 S is a heavy-duty single head CNC stone engraving machine designed for precision engraving, lettering, edge profiling, and decorative carvings on granite, marble, and natural stone slabs. With a 3000x1500mm working area, high-speed water-cooled spindle, and robust gantry construction, it is ideal for memorial stone work, architectural detailing, and custom designs.
| Axes | 3-Axis (X, Y, Z) |
|---|---|
| Working Area | 3000 x 1500 x 200 mm |
| Spindle Speed | 6,000 - 24,000 RPM |
| Spindle Power | 7.5 kW water-cooled |
| Spindle Heads | Single head |
| Rapid Traverse | 25 m/min |
| Applications | Engraving, Lettering, Profiling, Carving |
| Control System | AT CNC Router Controller |
The AT-SM 2530 S2 is a heavy-duty double head CNC stone carving router with a large 2500x3000mm working area and dual independent spindles. The dual head design delivers double productivity — engrave, carve, or profile two identical pieces simultaneously. Built for high-volume stone workshops processing granite, marble, and quartz.
| Axes | 3-Axis (X, Y, Z) per head |
|---|---|
| Working Area | 2500 x 3000 x 200 mm |
| Spindle Speed | 6,000 - 24,000 RPM |
| Spindle Power | 2 x 5.5 kW water-cooled |
| Spindle Heads | Dual independent heads |
| Rapid Traverse | 20 m/min |
| Applications | Carving, Engraving, Lettering, Relief Work |
| Control System | AT CNC Dual-Head Controller |

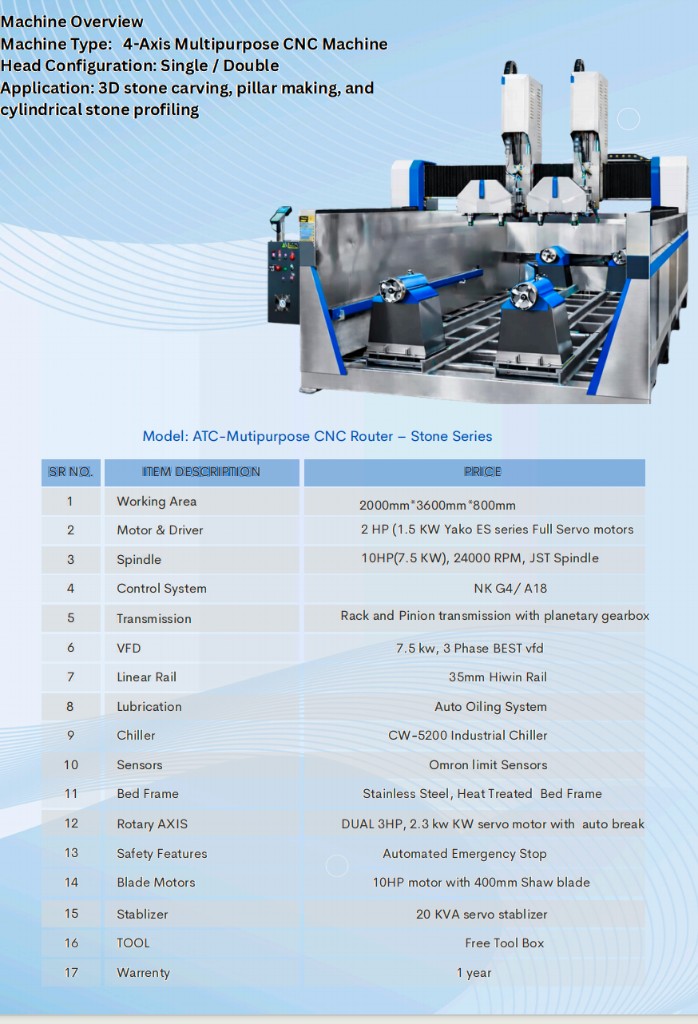

Model: ATC-Multipurpose CNC Router – Stone Series. Head Configuration: Single / Double (image shows double). Application: 3D stone carving, pillar making, and cylindrical stone profiling.
| Working Area | 2000mm × 3600mm × 800mm |
|---|---|
| Motor & Driver | 2 HP (1.5 KW) Yako ES series Full Servo motors |
| Spindle | 10HP (7.5 KW), 24000 RPM, JST Spindle |
| Control System | NK G4/A18 |
| Transmission | Rack and Pinion transmission with planetary gearbox |
| VFD | 7.5 kw, 3 Phase BEST vfd |
| Linear Rail | 35mm Hiwin Rail |
| Lubrication | Auto Oiling System |
| Chiller | CW-5200 Industrial Chiller |
| Sensors | Omron limit Sensors |
| Bed Frame | Stainless Steel, Heat Treated Bed Frame |
| Rotary AXIS | DUAL 3HP, 2.3 kw servo motor with auto break |
| Safety Features | Automated Emergency Stop |
| Blade Motors | 10HP motor with 400mm Shaw blade |
| Stabilizer | 20 KVA servo stabilizer |
| TOOL | Free Tool Box |
| Warranty | 1 year |
Specialized CNC machines for stone edge profiling, moulding, and combination profiling-carving operations.

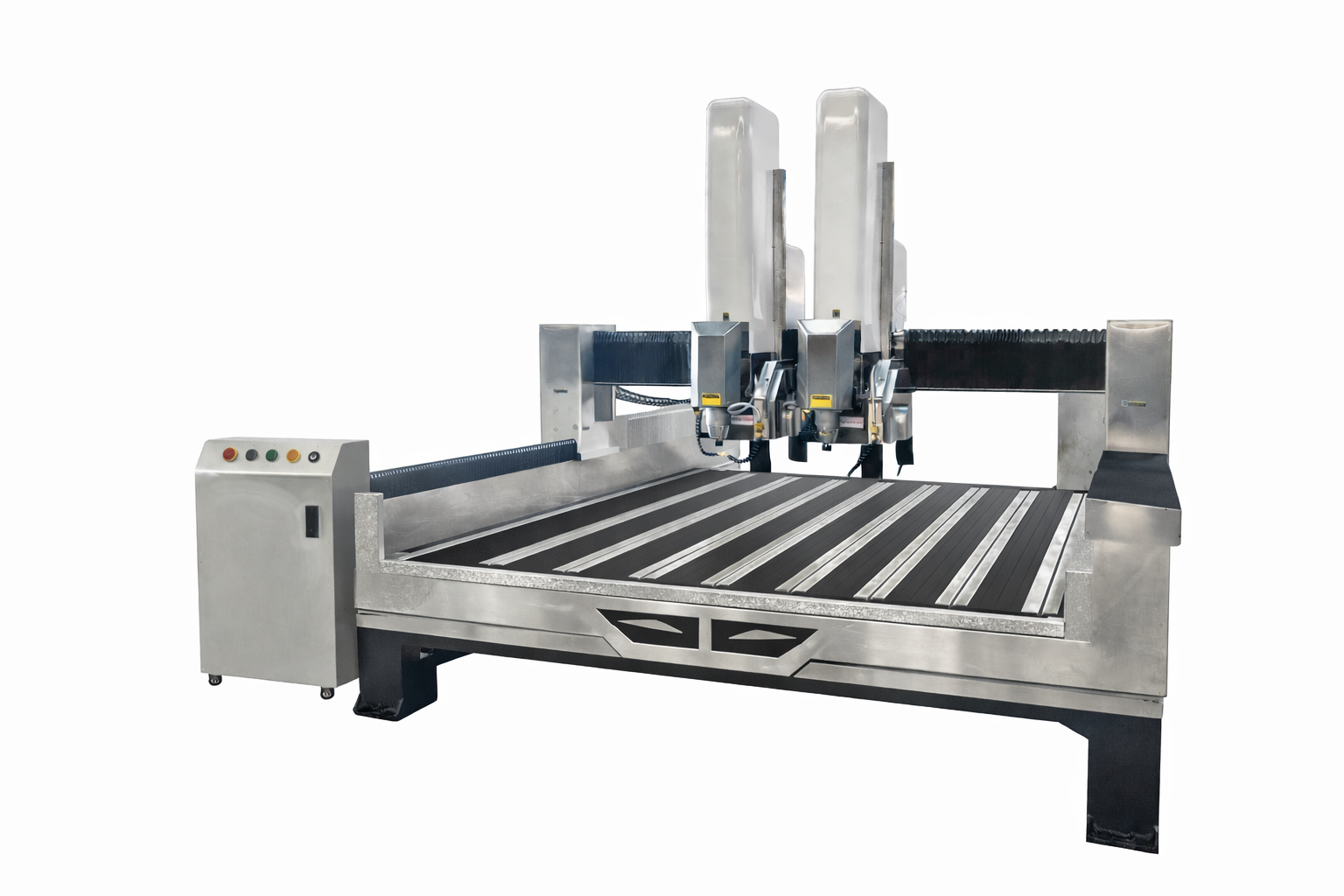

The AT-SM 2536 S2B2 is a high-performance dual head CNC stone profiling and carving machine that combines profiling and 3D carving capabilities in a single setup. With its powerful dual 7.5kW spindles, 2500x3600mm work area, and advanced tool path programming, it excels at edge profiling, moulding, decorative carving, and complex architectural stonework.
| Machine Type | CNC Stone Profiling & Carving |
|---|---|
| Working Area | 2500 x 3600 x 300 mm |
| Spindle Speed | 6,000 - 18,000 RPM |
| Spindle Power | 2 x 7.5 kW water-cooled |
| Spindle Heads | Dual (profiling + carving) |
| Positioning Accuracy | ± 0.05 mm |
| Applications | Profiling, Moulding, Carving, Architectural |
| Control System | AT CNC ProfileMaster Controller |
The AT-SM 2530 SB is a specialized CNC stone profiling and moulding machine with a generous 2500x3000mm work area. Designed for edge profiling, moulding, countertop edge finishing, and decorative border work on granite, marble, and engineered stone slabs. Its robust construction and precision tooling deliver smooth, consistent profiles every time.
| Machine Type | CNC Stone Profiling & Moulding |
|---|---|
| Working Area | 2500 x 3000 x 200 mm |
| Spindle Speed | 6,000 - 18,000 RPM |
| Spindle Power | 7.5 kW water-cooled |
| Profile Types | Bullnose, Ogee, Bevel, Chamfer, Custom |
| Positioning Accuracy | ± 0.05 mm |
| Applications | Edge Profiling, Moulding, Countertop Finishing |
| Control System | AT CNC Profile Controller |
Specialized CNC machinery for turning, carving, and processing stone columns, balusters, and pillars.

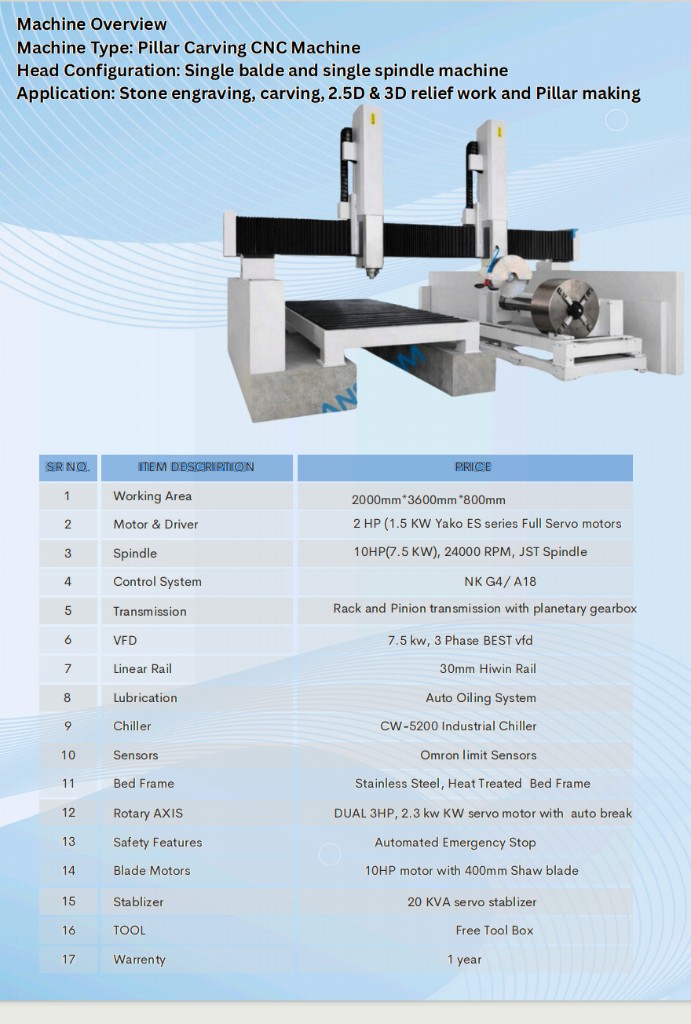

Machine Type: Pillar Carving CNC Machine. Head Configuration: Single blade and single spindle machine. Application: Stone engraving, carving, 2.5D & 3D relief work and Pillar making.
| Working Area | 2000mm × 3600mm × 800mm |
|---|---|
| Motor & Driver | 2 HP (1.5 KW) Yako ES series Full Servo motors |
| Spindle | 10HP (7.5 KW), 24000 RPM, JST Spindle |
| Control System | NK G4/A18 |
| Transmission | Rack and Pinion transmission with planetary gearbox |
| VFD | 7.5 kw, 3 Phase BEST vfd |
| Linear Rail | 30mm Hiwin Rail |
| Lubrication | Auto Oiling System |
| Chiller | CW-5200 Industrial Chiller |
| Sensors | Omron limit Sensors |
| Bed Frame | Stainless Steel, Heat Treated Bed Frame |
| Rotary AXIS | DUAL 3HP, 2.3 kw servo motor with auto break |
| Safety Features | Automated Emergency Stop |
| Blade Motors | 10HP motor with 400mm Shaw blade |
| Stabilizer | 20 KVA servo stabilizer |
| TOOL | Free Tool Box |
| Warranty | 1 year |
Advanced robotic arm for stone engraving, carving, and 2.5D & 3D relief work.
Our 7-Axis Robotic Arm is designed for stone engraving, carving, and 2.5D & 3D relief work. It delivers unmatched flexibility and reach for complex sculptural and architectural stone applications. Engineered for precision and long-term industrial operation.
| Machine Type | 7-Axis Robotic Arm |
|---|---|
| Application | Stone engraving, carving, 2.5D & 3D relief work |
4-Axis CNC bridge saw for granite & marble slab cutting with 625mm blade & miter cuts.
Premium 5-axis bridge saw with tilting head for miter cuts, profiling & complex shapes.
Heavy-duty CNC stone engraving machine for lettering, profiling & decorative carving.
Double head CNC stone carving router for double productivity on large slabs.
4-axis dual head engraving machine with rotary axis for columns & 3D work.
Dual head CNC stone profiling & carving machine for edge work & decorative carving.
CNC stone profiling & moulding machine for edge finishing & countertop work.
Single blade and single spindle machine for stone engraving, carving, 2.5D & 3D relief and Pillar making.
Stone engraving, carving, 2.5D & 3D relief work.
Every machine is purpose-built for granite, marble, and natural stone processing.
Positioning accuracy down to ±0.05mm across our multi-axis machine range.
Heavy-duty steel & cast iron construction for vibration-free, long-life operation.
Round-the-clock technical support with remote diagnostics & on-site service.
